Our customer was looking for an axle that not only had a high load capacity per axle, but also a very high braking capacity. Existing axles available in the market did not meet the deceleration requirements set by the customer. As a result, a new solution was found in cooperation with Tecma's design engineers.

Cusom made solution by Tecma engineers

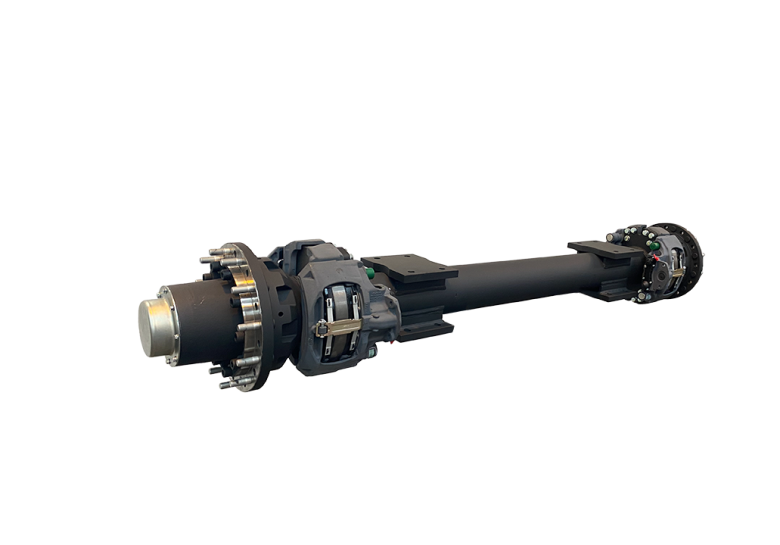

Our customer was looking for an axle that not only had a high load capacity per axle, but also a very high braking capacity. Existing axles available in the market did not meet the deceleration requirements set by the customer. As a result, a new solution was found in cooperation with Tecma's design engineers. Tecma developed an entirely new hub and axle for this application. This solution was achieved by applying 2 brake calipers per disc brake. This doubled the braking capacity to 2x 14-ton per axle!

Axle specifications

  • Very heavy duty axle
  • 42,5-ton (42.500Kg carrying capacity at 20km/h) per axle

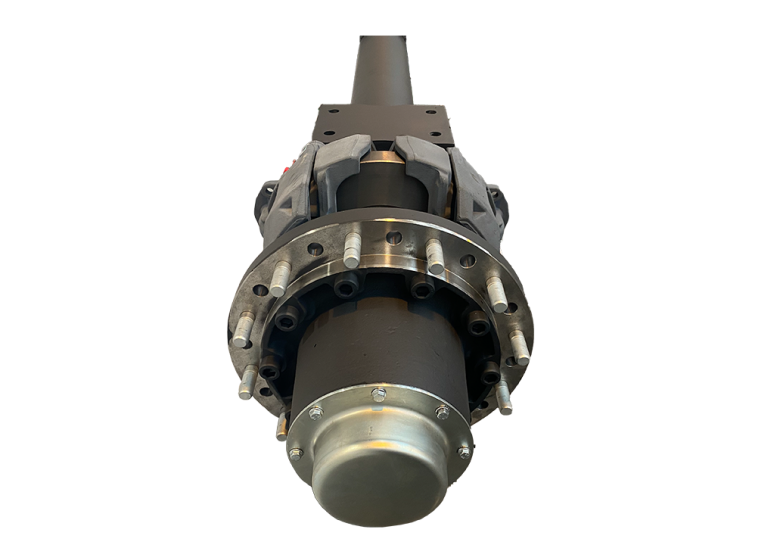

  • 2 x brake calipers per wheel (4 brake calipers per axle)
  • Track axle 2630mm
  • Suitable for an Industrial vehicle for very heavy (mining) application

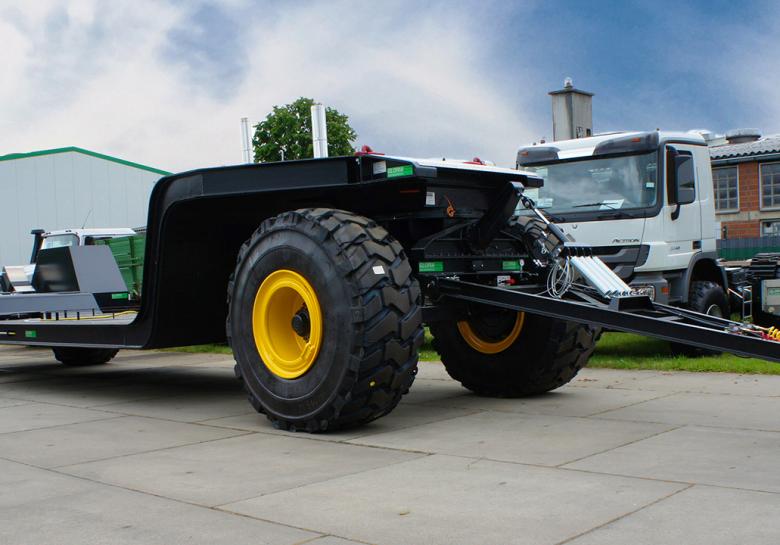

Ready for heavy duty transport

With a load capacity of more than 80T and a high braking capacity due to the 2 brake calipers per disc the we achieved the perfect solution for our customer.
