XST32A

The GreenSteering® XST32A is a linear trailer steering system for county and inner-city distribution. The two A-steered axles improve trailer manoeuvrability and lower the total cost of ownership by:

  • Optimal manoeuvrability
  • Less fuel consumption
  • Longer tyre life
  • Less CO2 emissions

With a steered trailer, you transport as much volume as 10 vans or 1.5 box trucks. Fewer trips, means less damage to the environment.

The unique, globally patented linear mechanical steering system is lighter and more durable than other steering systems. Due to the lower overall weight, it is possible to load more weight per trailer. It is suitable for various applications.

Specifications

Specifications of the
XST32A

Steering element Number of axles Number of axles steered Steering behaviour Steering system Height of front unit
HTC Cable 3 2 Linear A-Steered 80 mm

Downloads

Quick downloads

XST32A

XST steering systems

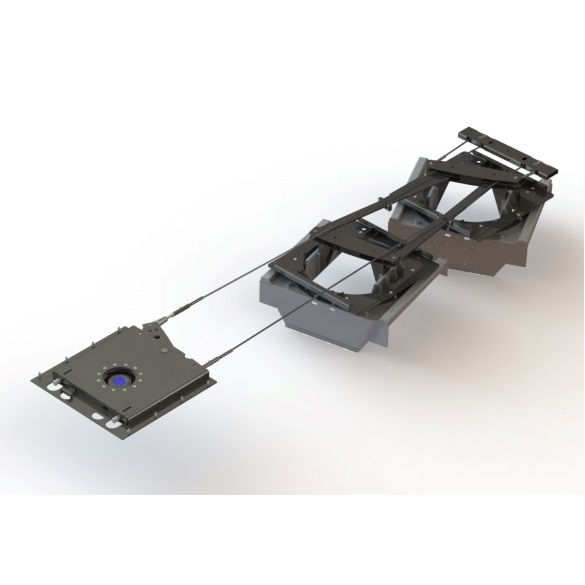

View the worldwide patented XST32A steering system in 3D

By choosing a GreenSteering steering system, you are helping to create a greener planet and saving on unnecessary CO2, NOX and particulate emissions. Create a better future for us all and for your business.

  • Save on engineering
  • Save on tyre costs
  • Reduce CO2 emissions
  • Reduce particulate emissions
  • Reduce and save on fuel consumption

Facts about the XST32A

  • Safer

    The GreenSteering® XST32A steering module provides a higher level of safety than a rigid axle trailer. The extreme manoeuvrability and linear character of the steering system make turning and reversing extremely easy. Safer for pedestrians and cyclists. GreenSteering® restricts jackknifing. Safer for the driver and the public.

  • Better for your tyres and roads

    A non-steered rigid semi-trailer and a semi-trailer with a trailing axle generate a high level of friction between the tyres and the road surface when turning, causing damage to the road. This doesn’t happen with the GreenSteering® XST32A module with which almost no friction is generated when steering. Lower costs for the taxpayer and for the user.

  • Higher loading capacity

    The XST32A from GreenSteering® ensures a higher loading capacity than trailers equipped with other mechanical steering systems. The axles are further apart, reducing the risk of overloading.

  • More stable road behaviour

    The GreenSteering® XST32A steers the two rear axles of the semi-trailer so that the driver experiences extreme manoeuvrability at low speeds and stability at higher speeds. Because the rear axle is actively steered, reversing manoeuvres are just as easy as forward manoeuvres. There is no need to lock an axle when reversing as it is with a self-steered axle. No noise generated by the scrubbing of tyres, making the system ideal for downtown transport movements at night. With the GreenSteering® system, you will be able to access locations that would be inaccessible with a rigid trailer, enabling you to transport more freight to “difficult to reach locations” than ever before in a single trip – and at less cost to you.

smart technical solutions in trailer construction

At SAF-HOLLAND Benelux, we always aim to provide the best and that is why we only supply premium-brand products. But we go one step further than that: our R&D department works with trailer manufacturers to design smart technical solutions that will really make a difference – today and in the future. This with the aim to make trucks and trailers more sustainable, efficient, and reliable in the long term
