VSE Smart Steering

VSE Smart Steering is a steering assistance system that allows a self steer trailer rear axle to be actively steered when driving forwards or reversing with a trailer.

The major benefit of this system is that it enables a trailer with a self steering rear axle to be used more efficiently and for a wider range of applications when loading and unloading. The reason: the rear steer axle no longer has to be set in a fixed position for reversing.

It also makes a lot more locations accessible with a trailing axle for loading and unloading without manoeuvring, saving you a great deal of time too!

Specifications

Specifications of the
VSE Smart Steering

Steering element Steering behaviour Front unit Weight Power supply
Electrohydraulic Programmable Not required 40 kg Electricity from the truck

Downloads

Quick downloads

VSE SMART STEERING V2

Technical possibilities of VSE Smart Steering

  • Standard software

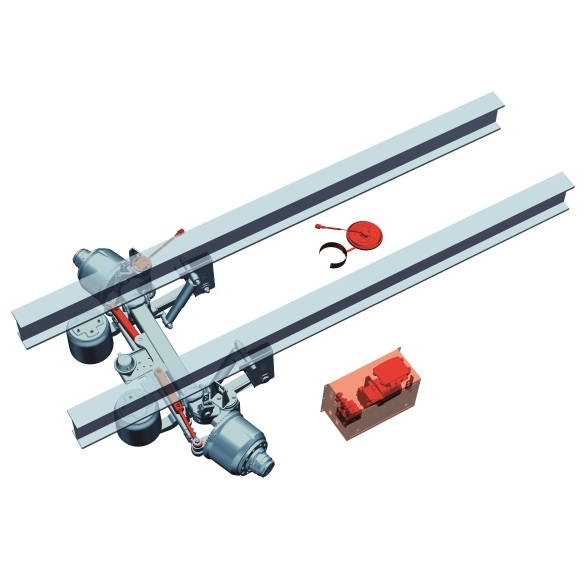

  • One-size stainless steel system locker with removable cover. In addition, 2 steering cylinders, an angle sensor, a kingpin and various cables are supplied
  • Suitable for 1 or 2 trailing axle with a maximum axle load of 10 tons
  • Suitable for BPW, SAF, Gigant or Tecma trailing axles.
  • System temperature range: - 30 °C to + 40 °C
  • Steering up to max. 25 km/h forwards and backwards
  • The system weighs 40 kg
  • Can be retrofitted
